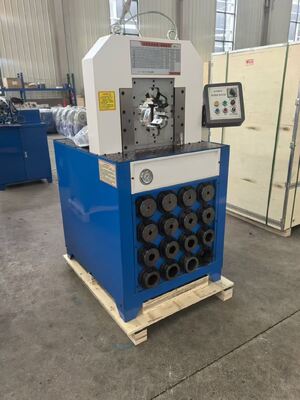

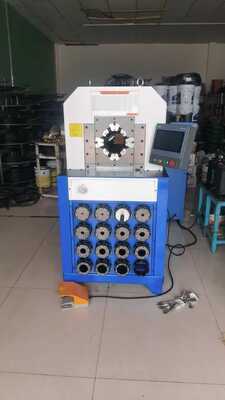

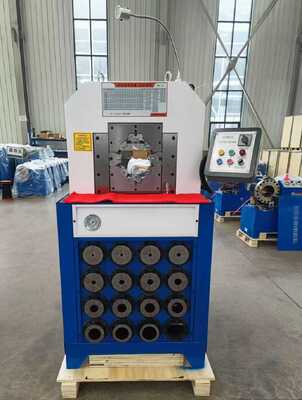

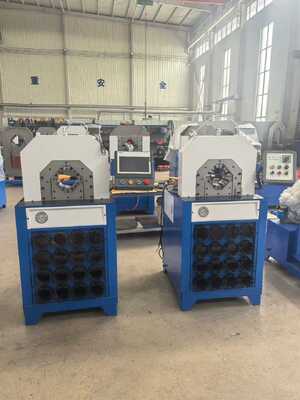

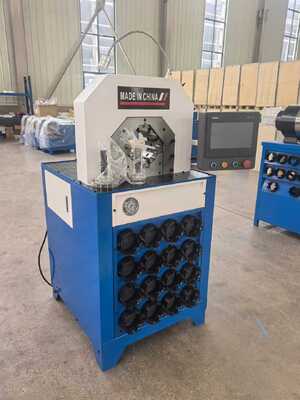

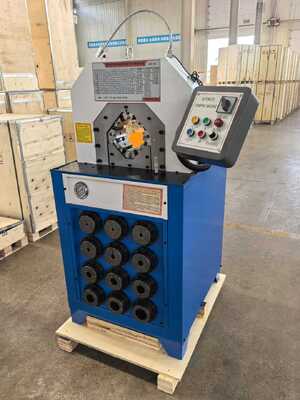

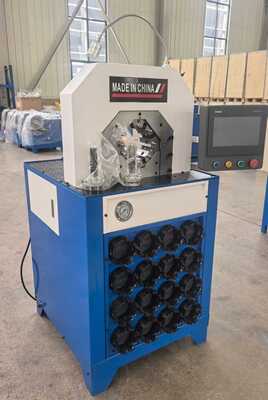

3 Inch Hydraulic Hose Crimping Machine with 1000T Crimping Force 31.5MPA Rated Pressure and 6-76mm Crimping Range

3 Inch Hydraulic Hose Crimping Machine with 1000T Crimping Force 31.5MPA Rated Pressure and 6-76mm Crimping Range

Nom De Marque:	FY
Numéro De Modèle:	FY-CBK-120C
Nombre De Pièces:	1 ensemble
Prix:	5000
Conditions De Paiement:	LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacité à Fournir:	300 ensembles par mois

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Shanghai, Chine

Certification:

Documents:

OUR CATALOGUE.pdf

Poids:

1250 kg

Condition:

NOUVEAU

Dimension(L*L*H):

755*1045*1630MM

Garantie:

1 an

Service après-vente assuré:

Assistance technique vidéo, support en ligne

Tension:

110V/220V/380V/415V 50/60Hz

Puissance (w):

5,5 kW

Force d'état:

1000T

Couleur:

Bleu/blanc ou fait sur commande

Gamme d'état:

6-76mm,1/4"à3'',1/4''-3''

Nom du produit:

Système de contrôle de bouton de 3 pouces, 15 matrices avec moules à changement rapide, Machine à se

Application:

Tuyau à serrer

Dies gratuits:

15 ensembles

Pression nominale:

31,5 MPA

Mots-clés:

Machine de rabattement de tuyau hydraulique de PLC

Souligner:

Machine de pressage de tuyaux de 3 pouces, machine de pressage de tuyaux en spirale, machine de pres

Détails d'emballage:

Exporter la boîte en bois standard

Capacité d'approvisionnement:

300 ensembles par mois

Mettre en évidence:

1000T Crimping Force Hydraulic Hose Crimping Machine

31.5MPA Rated Pressure Hose Pressing Machine

6-76mm Crimping Range Hydraulic Fitting Press

Description du produit

3 Inch Button Control System 15 Dies With Fast Change Moulds Tools Hydraulic Hose Crimping Machine

Hydraulic Hose Pressing Machine with Button Control System

Introducing our 3 Inch Hydraulic Hose Pressing Machine, engineered for high efficiency and quick operation. Designed for precision and versatility, this machine is perfect for various industrial applications.

Key Features

High Output of 300 Pieces/Hour - Designed for rapid crimping to boost productivity
Button Control System - Intuitive interface for precise operation
Fast Change Mould Tools - Quick-change moulds for seamless transitions
Versatile for Big Elbow Fittings - Handles larger hydraulic fittings with ease
Robust Construction - Built for durability and long-term reliability
Safety Features - Designed with operator safety in mind

Operation Precautions

Perform 20-30 unloaded crimps when first using the machine
In winter, perform additional unloaded crimps to increase oil temperature
Select and install appropriate molds based on hose specifications
Position hose with joint properly for complete crimping
Execute crimping operation until automatic mold opening
Verify crimped dimensions and adjust micrometer as needed

Technical Specifications

Crimping Range	6-76mm (1/4"-3" inner diameter)
Quantity of Dies	13 sets
System Pressure	31.5Mpa
Motor Power	4kw
Voltage Options	110V/220V/380V/415V, 50HZ/60HZ
Crimping Force	2800KN
Work Efficiency	300pcs/h
Machine Dimensions	840×1090×1760mm
Net Weight	1250kg
