3 Inch Hydraulic Hose Crimping Machine with PLC Control System 6-76mm Crimping Range and 15 Interchangeable Dies

3 Inch Hydraulic Hose Crimping Machine with PLC Control System 6-76mm Crimping Range and 15 Interchangeable Dies

Nom De Marque:	FY
Numéro De Modèle:	FY-CBK-120C
Nombre De Pièces:	1 ensemble
Prix:	5000
Conditions De Paiement:	LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacité à Fournir:	300 ensembles par mois

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Shanghai, Chine

Certification:

Documents:

OUR CATALOGUE.pdf

Poids:

1250 kg

Condition:

Nouveau

Dimension (l*l*h):

755*1045*1630MM

Garantie:

1 an

Service après-vente fourni:

Support technique vidéo, support en ligne

Tension:

110V/220V/380V/415V 50/60Hz

puissance (w):

5,5 kW

Force de sertissage:

1000T

Couleur:

Bleu/blanc ou fait sur commande

Plage de sertissage:

6-76mm,1/4"à3'',1/4''-3''

Nom du produit:

Machine à sertir les tuyaux hydrauliques de 3 pouces, 6-76mm, avec 15 matrices et moule à changement

application:

Tuyau à serrer

Dies gratuits:

15 ensembles

Pression nominale:

31,5 MPa

Mots-clés:

Machine de rabattement de tuyau hydraulique de PLC

Souligner:

Machine à sertir les tuyaux hydrauliques électriques de 3 pouces, avec système de contrôle PLC, plag

Détails d'emballage:

Exporter la boîte en bois standard

Capacité d'approvisionnement:

300 ensembles par mois

Mettre en évidence:

PLC Control System Hydraulic Hose Crimping Machine

6-76mm Crimping Range Hose Pressing Machine

15 Interchangeable Dies Hose Crimper

Description du produit

3 Inch Electric Hydraulic Hose Crimping Machine

Advanced PLC-controlled crimping machine with 6-76mm crimping range and 15 interchangeable dies for precision hydraulic hose applications.

Product Overview

The 3 Inch Electric Hydraulic Hose Crimping Machine represents cutting-edge technology designed for precision and efficiency in hose crimping applications. Equipped with an advanced PLC control system, this machine offers exceptional versatility with a crimping range of 6mm to 76mm and includes 15 interchangeable dies, making it ideal for hydraulic repair shops, automotive service centers, and oil distribution operations worldwide.

Key Features

Advanced PLC Control System: User-friendly interface for simple operation and precise control of crimping parameters
Wide Crimping Range: Accommodates hoses from 6mm to 76mm (1/4" to 3") for diverse applications
High-Performance Crimping: Electric hydraulic system ensures consistent, reliable crimping for high-pressure environments
15 Interchangeable Dies: Quick adjustments between different hose sizes to maximize productivity
Robust Construction: High-quality materials ensure durability and longevity under heavy use

Operational Advantages

Increased Efficiency: Streamlined crimping process with electric hydraulic system and PLC control
Cost-Effective Solution: Single machine accommodates multiple hose sizes, reducing equipment investment
Exceptional Accuracy: Precise adjustments ensure consistent, high-quality crimping results
User-Friendly Design: Intuitive interface accessible for operators of all skill levels
Versatile Applications: Suitable for hydraulic repair, automotive services, and oil industry applications

Technical Specifications

Specification	Details
Crimping Range	6-76mm (1/4"-3" inner diameter)
Quantity of Dies	15 sets
System Pressure	31.5Mpa
Motor Power	4kw
Voltage Options	110V/220V/380V/415V, 50HZ/60HZ
Crimping Force	2800KN
Work Efficiency	300pcs/h
Machine Dimensions	84010901760mm
Net Weight	1250kg

Additional Models

Model	Specifications
FY-CBK-120C Hose Pressing Machine	Crimping Range: 6-76mm (1/4"-3") Crimping Force: 2800KN Max. Opening: 165mm Customized die sets available Special voltage options: 110V/220V/380V/415V 50/60Hz

Frequently Asked Questions

What sizes of hoses can this machine crimp?
The hydraulic hose crimping machine accommodates hoses ranging from 6mm to 76mm in diameter.
How many dies are included with this machine?
Includes 15 interchangeable dies for versatile crimping of various hose sizes and types.
What types of control systems does the machine offer?
Features different control options to suit specific crimping requirements.
Is the machine durable for continuous use?
Constructed from high-quality materials to withstand heavy use in busy workshop environments.
How does the fast change mould design improve efficiency?
Fast change mould design allows quick die swapping, significantly reducing downtime and boosting productivity.

Product Images

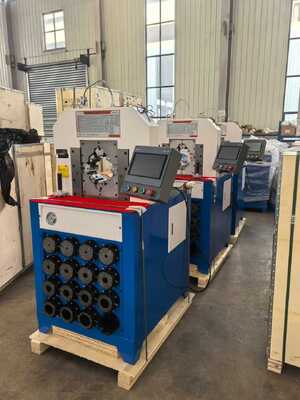

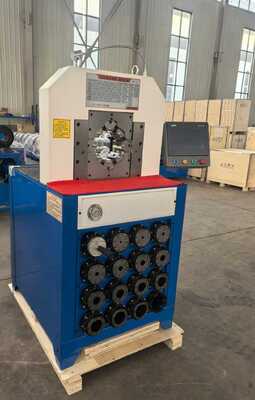

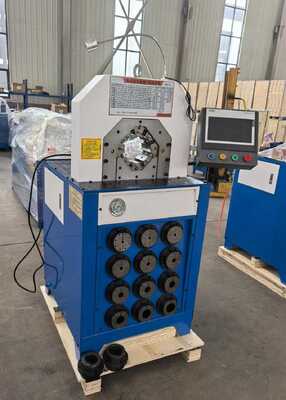

Front view

Side view

Control panel

Die set

In operation

Crimping demonstration

Component details

FY-CBY-51B Model

Specifications

Workshop environment

Close-up view

Operator using machine

Operation Video

View Operation Video

The 3 Inch 6-76mm Hydraulic Hose Crimping Machine is a high-performance solution tailored for businesses focused on hydraulic applications. With its wide crimping range, multiple control system options, and fast change mould design, this machine enhances efficiency and productivity in hydraulic repairs and services. Invest in this reliable hydraulic hose crimping machine to elevate your operations and achieve outstanding results in hose management!
