Machine de sertissage de tuyau hydraulique

6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

Nom De Marque:	FY
Numéro De Modèle:	FY-P38
Nombre De Pièces:	1 ensemble
Prix:	USD$ 1850/1800/1750/1700
Conditions De Paiement:	LC, T/T, D/A, D/P, Western Union, MoneyGram
Capacité à Fournir:	300 ensembles par mois

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

La Chine, Changhaï

Certification:

Documents:

Tension:

Le système de freinage doit être équipé d'un dispositif de freinage de freinage de freinage de frein

Poids brut:

300 kg

Poids net:

275 kg

puissance (w):

3KW/4KW

Dimension (l*l*h):

950*630*700 millimètre

Dimension du colis:

1000*680*750 millimètre

Garantie:

Condition:

Nouveau

Service après-vente fourni:

Support technique vidéo, support en ligne

Force de sertissage:

300 tonnes/0,3 MT

Nom du produit:

Machine à sertir les tuyaux hydrauliques de 2 pouces jusqu'à 2,5 pouces de 6 à 51 mm avec outil

Plage de sertissage:

6-51mm/1.5 pouces/2 pouces

Couleur:

Bleu, bleu ou sur mesure

Application:

Tuyau à serrer

Dies gratuits:

10 ensembles

Pression du système:

26 MPa/31,5 MPa/260 bars/315 bars

Volume de sortie de la pompe:

2.5L/5L

Souligner:

Machine de rabattement de tuyau hydraulique avancé, machine de rabattement de tuyau hydraulique de c

Détails d'emballage:

CAISSE EN BOIS

Capacité d'approvisionnement:

300 ensembles par mois

Mettre en évidence:

2 inch hydraulic hose crimping machine

hydraulic hose crimper with interchangeable dies

fast change mould hose crimping tool

Description du produit

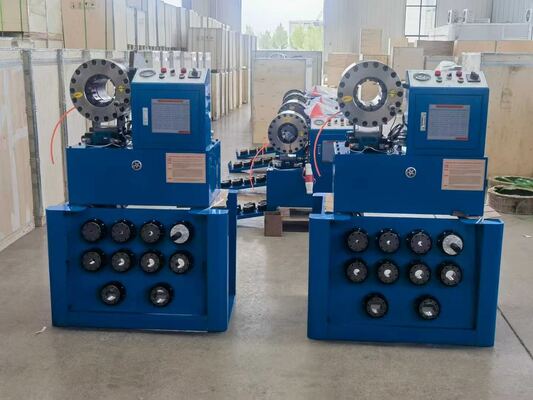

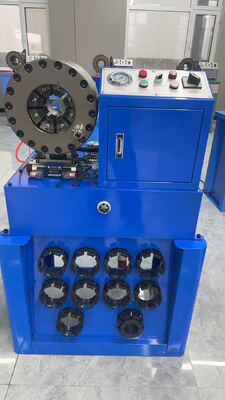

2 Inch Crimping Up To 2.5 Inch 6-51mm Hydraulic Hose Crimping Machine With Fast Change Mould Tool And Rack And 10 Interchangeable Dies For Versatile Crimping

Versatile 2-Inch Hydraulic Hose Crimping Machine with Fast-Change Tooling System
Elevate your hydraulic service efficiency with our industrial Hydraulic Hose Crimping Machine. Specifically designed for high-volume hydraulic/car repair shops and the demanding oil and gas industry, this machine bridges the gap between standard 2-inch crimping and specialized large-bore requirements.
This model is a top choice for professionals in the USA, Europe, and Southeast Asia who demand speed, precision, and a clutter-free workspace.

Key Features & Product Highlights
• Extended Crimping Capability: While optimized for standard 6mm to 51mm (2-inch) hoses, this high-performance unit is engineered with an oversized opening to accommodate specialized fittings up to 2.5 inches.
• Revolutionary Fast-Change Mould Tool: Eliminate the manual labor of swapping dies. Our magnetic quick-change tool allows you to switch all eight die segments in seconds, significantly reducing downtime.
• Integrated Die Rack: Keep your workspace organized and your dies protected. The built-in storage rack ensures that all 10 interchangeable die sets are within arm’s reach and organized by size.
• Precision Control: Features a high-accuracy micrometer adjustment system to ensure every crimp meets exact manufacturer specifications for high-pressure safety.
Why This Machine Stands Out
1. Maximum Productivity: The combination of the Fast-Change Tool and the Die Rack makes this one of the fastest manual-load machines on the market—perfect for busy repair shops.
2. Unmatched Versatility: From small automotive fuel lines to heavy-duty industrial 4-wire spiral hoses, this machine handles it all with a single setup.
3. Built for Rigorous Use: Designed with a reinforced machine head and premium hydraulic valves to ensure consistent performance in the high-heat environments of Southeast Asia or the heavy-duty oil fields of North America.

Technical Specifications

Model	FY-P51 Hose Crimping Machine
Crimping Range	6-51mm (1/4"-2")
Crimping Force	300T
System Pressure	26Mpa/31.5Mpa (Optional)
Accuracy	0.01mm
Work Efficiency	200 pcs/h
Voltage Options	220V/240V/380V/415V
Motor Power	3KW/4KW
Dimensions (LWH)	950630700 mm
Weight	275kg
Die Sets Included	10 sets
